20FT 40FT 48FT 53FT FLATBED TRAILER

HUAYU has 20 years of production history since the first semi-trailer was produced in 2001. At present, HUAYU semi-trailer product lineup covers >20 product models, meeting more than 90% of customers' transportation needs. HUAYU has a strong R & D team, and high-quality semi-trailers have won unanimous praise from customers

The Largest Semi Trailer Manufacturer in Northern China, Trustworthy

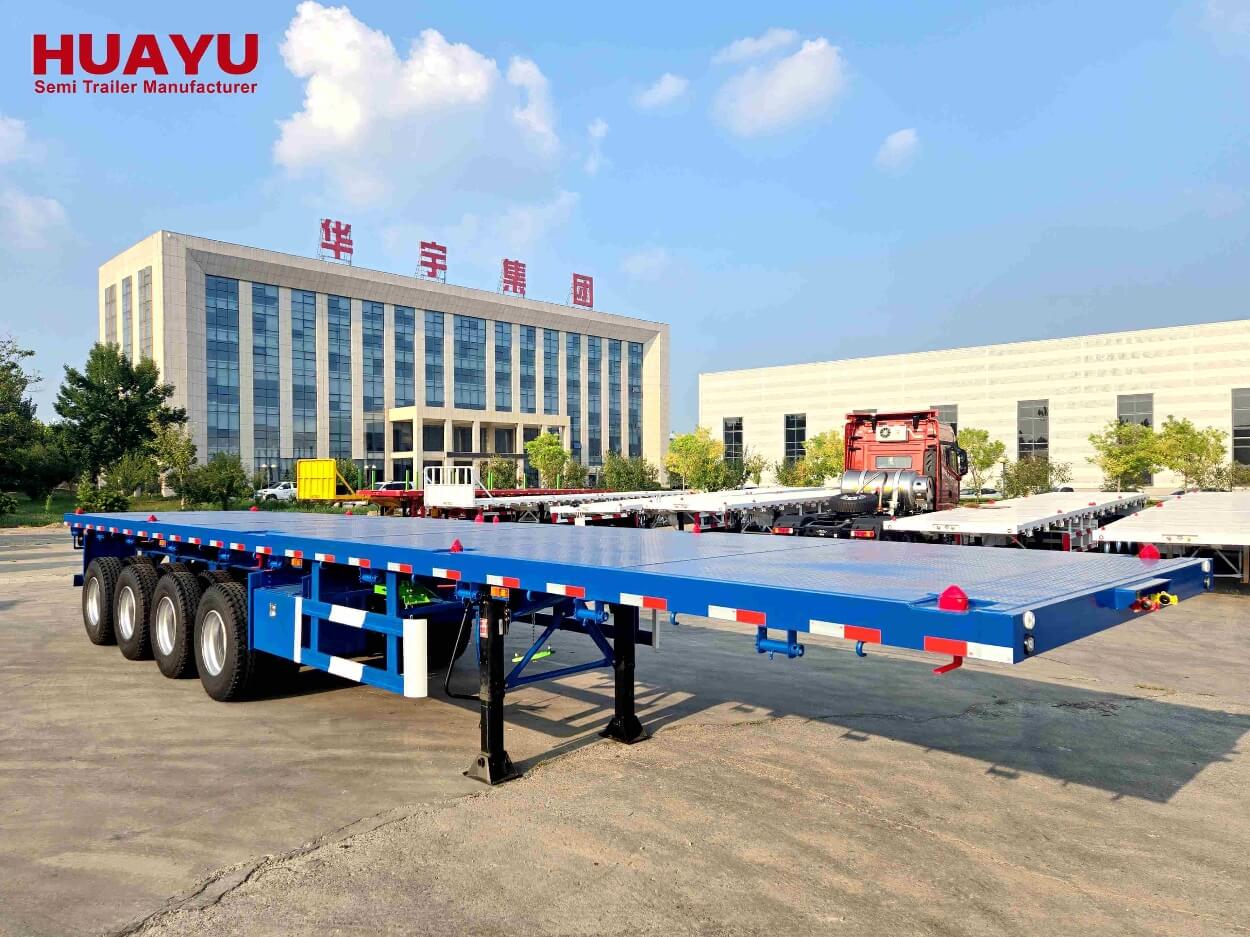

  Flatbed Semi Trailer For Sale

The main feature of the flatbed semi trailer is that the loading part of the trailer is a flat, unobstructed platform that can be flexibly used to load various types of cargo. HUAYU designers will find the best semi-trailer design scheme according to your load, we have 2 axle, 3 axle, 4 axle flatbed semi trailer also accept customized services

As a common means of transport, the flatbed semi trailer has its unique advantages in the logistics industry:



1.The flatbed semi-trailer has a wide range of application: it can not only transport ordinary goods, but also transport ultra-wide, overweight and ultra-long goods, and has a wide range of application.



2.High loading and unloading efficiency: flatbed semi trailer is easy to use forklift and other loading and unloading equipment, improve loading and unloading efficiency, reduce labor intensity and loading and unloading time.



Flatbed Semi Trailer Types

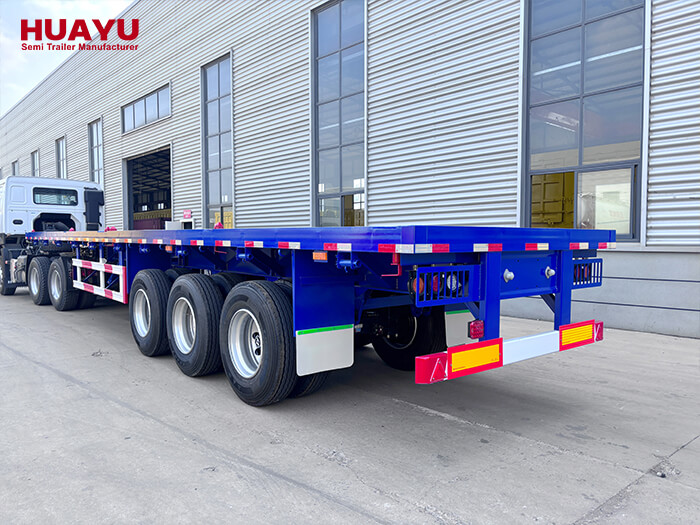

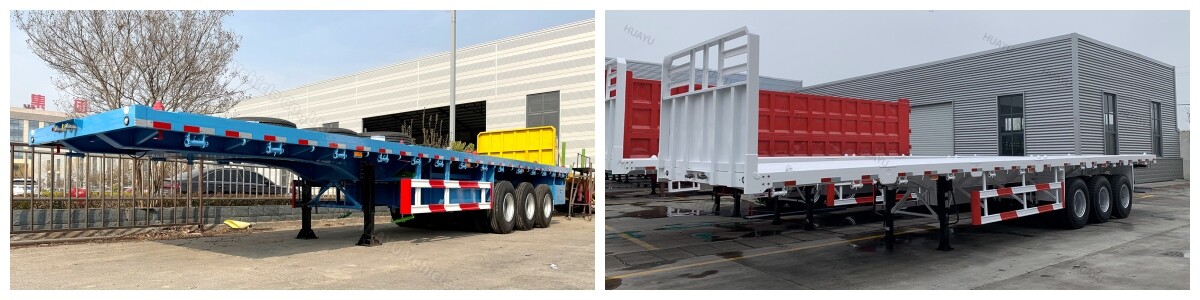

1.Standard flatbed semi trailer: This is the most common type, with a flat loading platform, suitable for transporting various types of cargo.

20ft flatbed trailer size: 11500x2500x1500mm

40ft flatbed trailer size: 12500x2500x1500mm

45ft flatbed trailer size: 13700x2500x1500mm

53ft flatbed trailer size: 16000x2500x1500mm

2.Expandable flatbed semi trailer: The platform of this semi-trailer can be expanded and contracted by the hydraulic system, which is suitable for transporting goods with large changes in length.

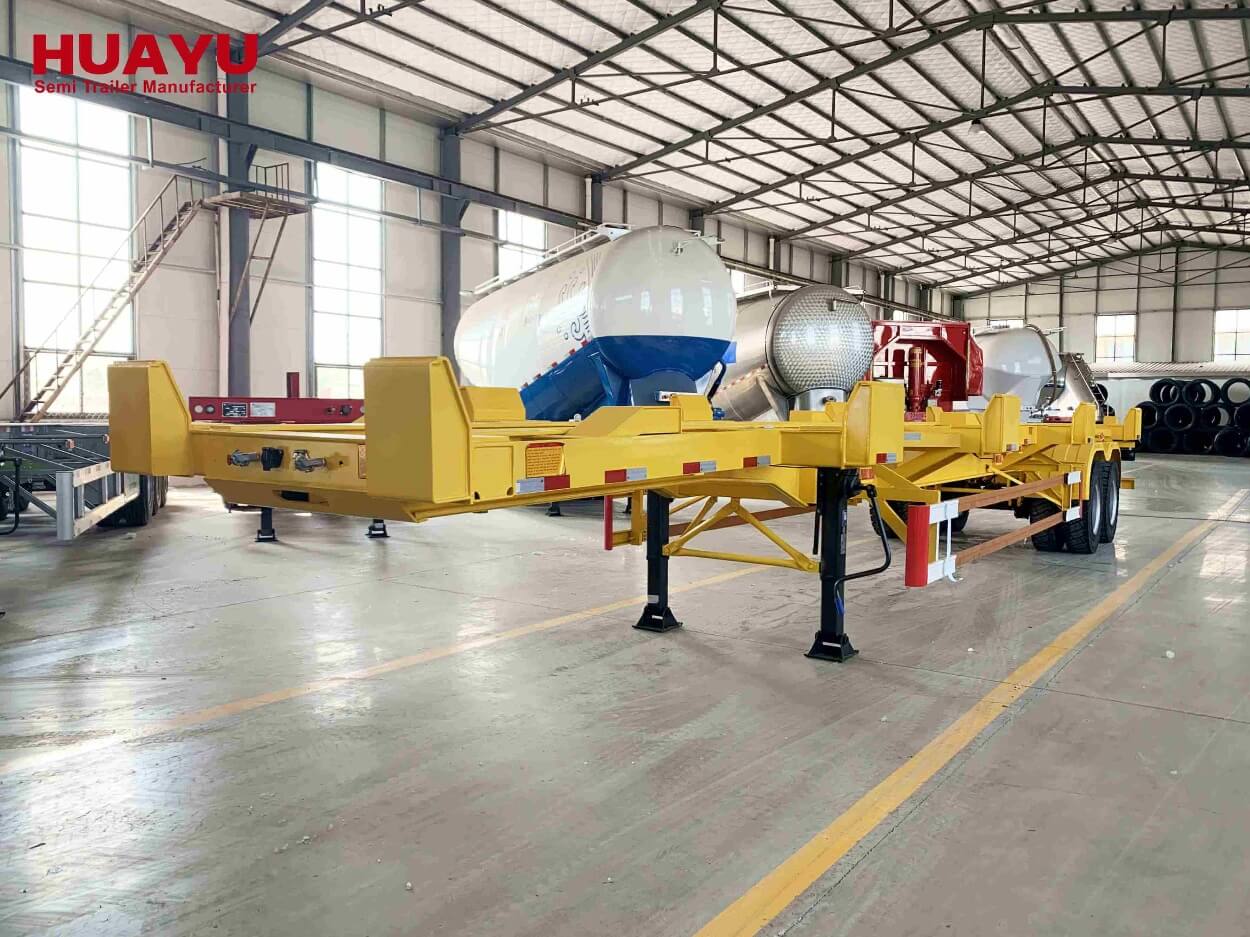

3.Skeleton flatbed semi trailer: This semi-trailer is mainly used for transporting containers, and its structural design facilitates the rapid loading and unloading of containers.

4.Dump type flat semi-trailer: The platform of this semi-trailer can be tilted to facilitate quick unloading of bulk goods, such as coal, sand and gravel.

Main Parts of Flatbed Semi-Trailer

Skeleton: This is the main structure of the trailer, usually made of high-strength steel, to support the weight of the entire vehicle and ensure stability.



Loading Deck: This is the flat area on the trailer used to place the cargo, usually made of strong metal plates, capable of supporting the weight of heavy cargo.



Suspension systems:including spring or air suspension, are used to connect the wheels to the frame, reducing road vibration and providing a comfortable driving experience.



Wheels and Tires: Trailers are equipped with multiple wheels, usually with two or more axles, to distribute weight and reduce pressure on the road surface.



Braking System: includes the main brake and emergency brake, used to control the speed and stop of the trailer.



Lighting and Signaling System: includes signal lights such as taillights, turn signals, brake lights, and necessary reflective signs to ensure visibility at night and in inclement weather.



Auxiliary Equipment: According to actual needs, the flat semi-trailer may be equipped with a variety of additional equipment

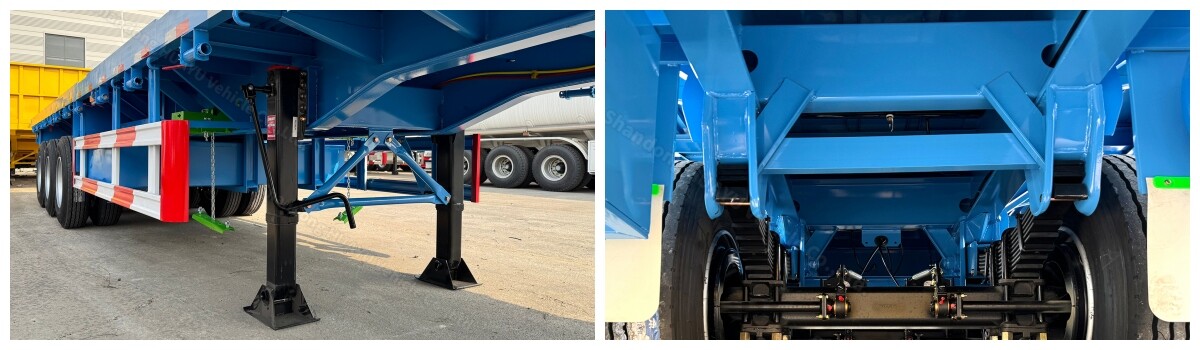

Landing gear

HUAYU VEHICLE or JOST landing qear can be optioned made in aluminum or steel: designed to work under both high and low temperature inthe range of -30to 120

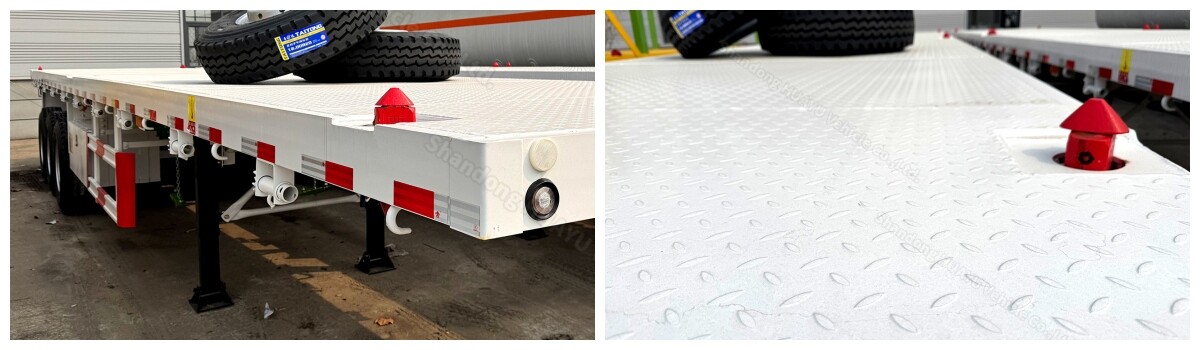

Container lock

HUAYU VEHICLE twist locks are durable with unique design,which ensures the stability of containers and ease of loading and unloading.

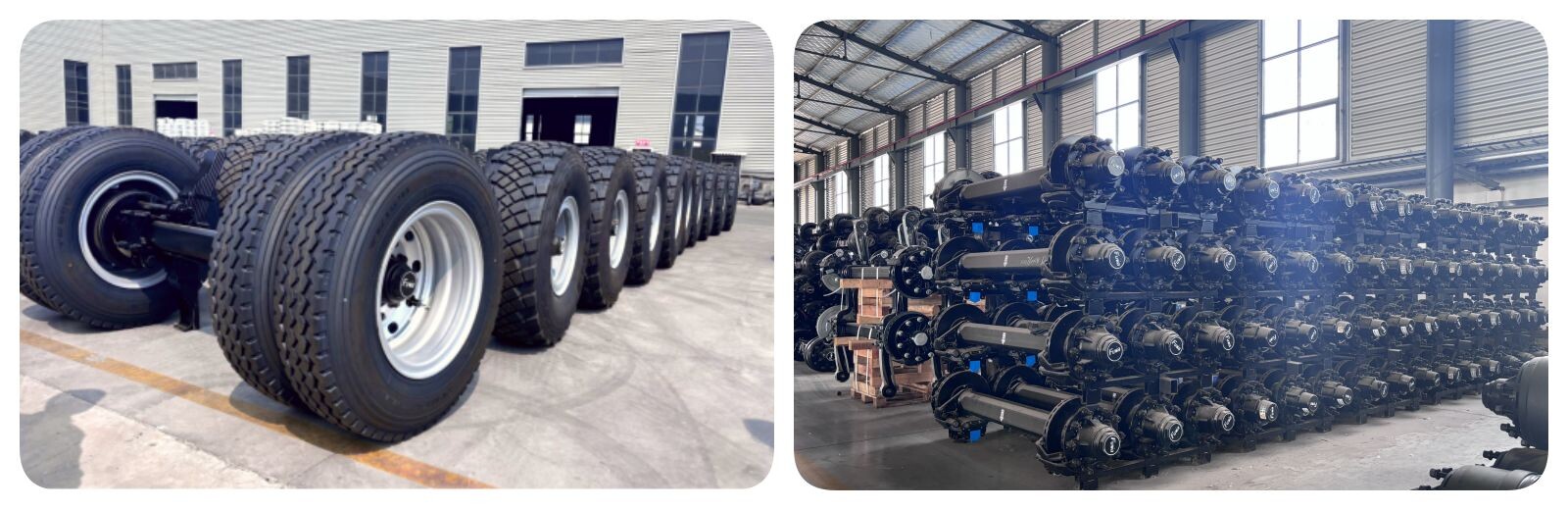

Tires and Axle

High quality tire brands such as Double Coin/Linglong /Michelin/Triangle/Bridgestone can be optioned for the best performance.

We have BPW, FUWA, L1, HUAYU, ZY brands to choose from
