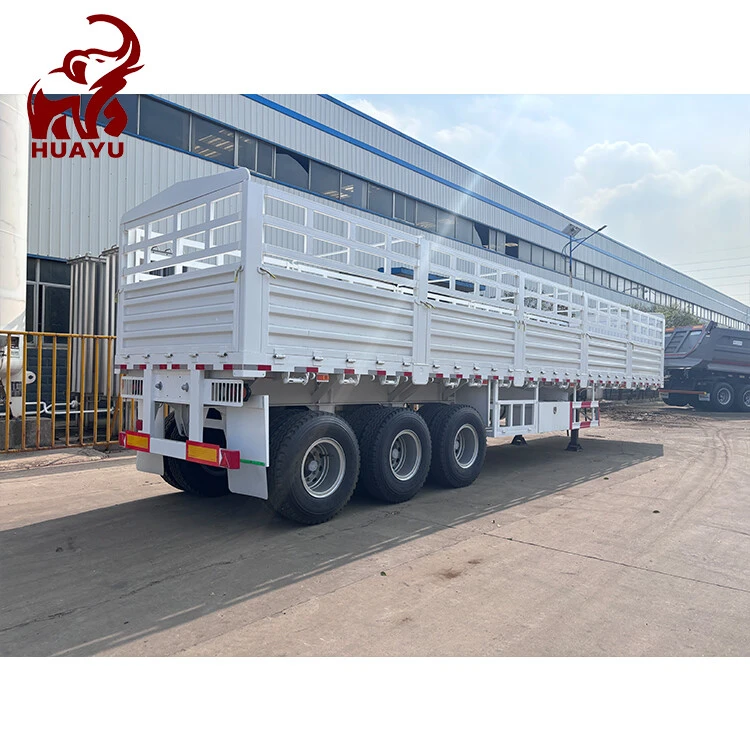

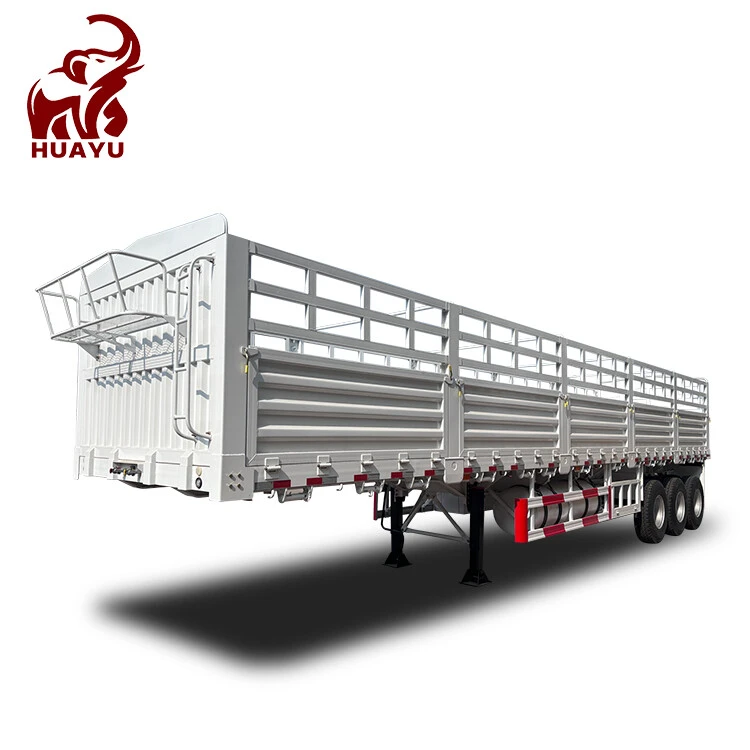

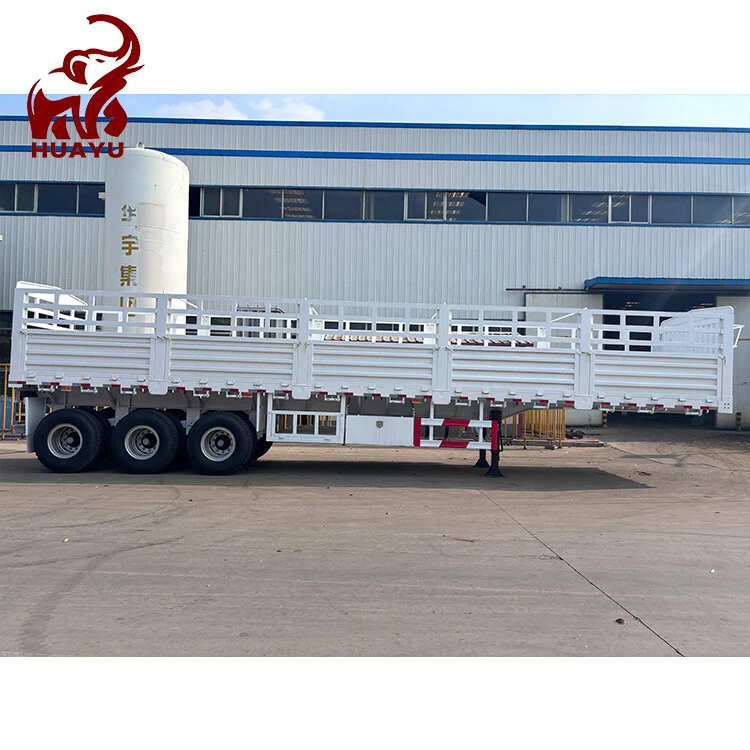

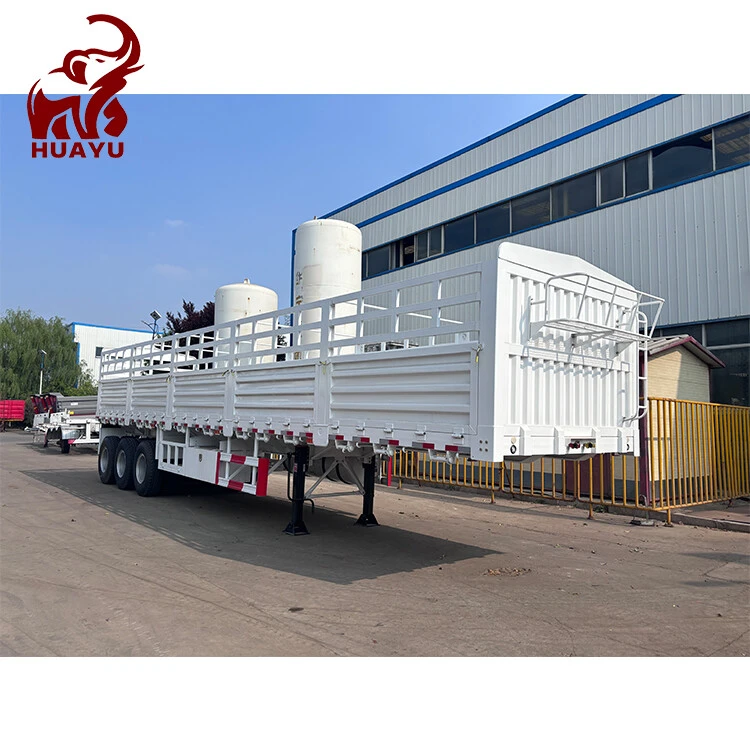

3 Axle Carrier Livestock Animal Fence Cargo Semi Trailer
Huayu fence cargo trailer is usually used to transport livestock and animals, bagged bulk cargo, vegetables and fruits, building materials, mechanical parts and so on.
Trailer Type: 3 Axle Carrier Livestock Animal Fence Cargo Semi Trailer
Price Range: $12,00-18,000
Delivery Time: 7-20 days
Load capacity: 60 ton
Application: bulk cargo, livestock,building materials
Get A Quote

 Product details

Dimension12.6m×2.6m×3.3m
Payload60Tons
Fence height0.4+0.4m(middle gap 0.2m)
Side wall height0.6m
Tare weightAbout 8.5 tons
Twist lock12 units
Main beamHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Frame BeamTop Flange 14mm,width 140mm; MiddleFlange 8mm; Bottom Flange 16mm,width 140mm, main beam height  500mm
Frame FloorThe Thickness is 3mm pattern
Edge beam16# Channel
Through beam10#Channel
Along beam6#Channelx6
Axle3 axles,
Landing Gear28T lifting capacity with two speed JOST brand
King Pin2.00 or 3.5 inch bolt-in king pin
SuspensionMechanical suspension re forced type
Leaf Spring90mm(W)*16mm(T)*10 Layer
Tire12pcs

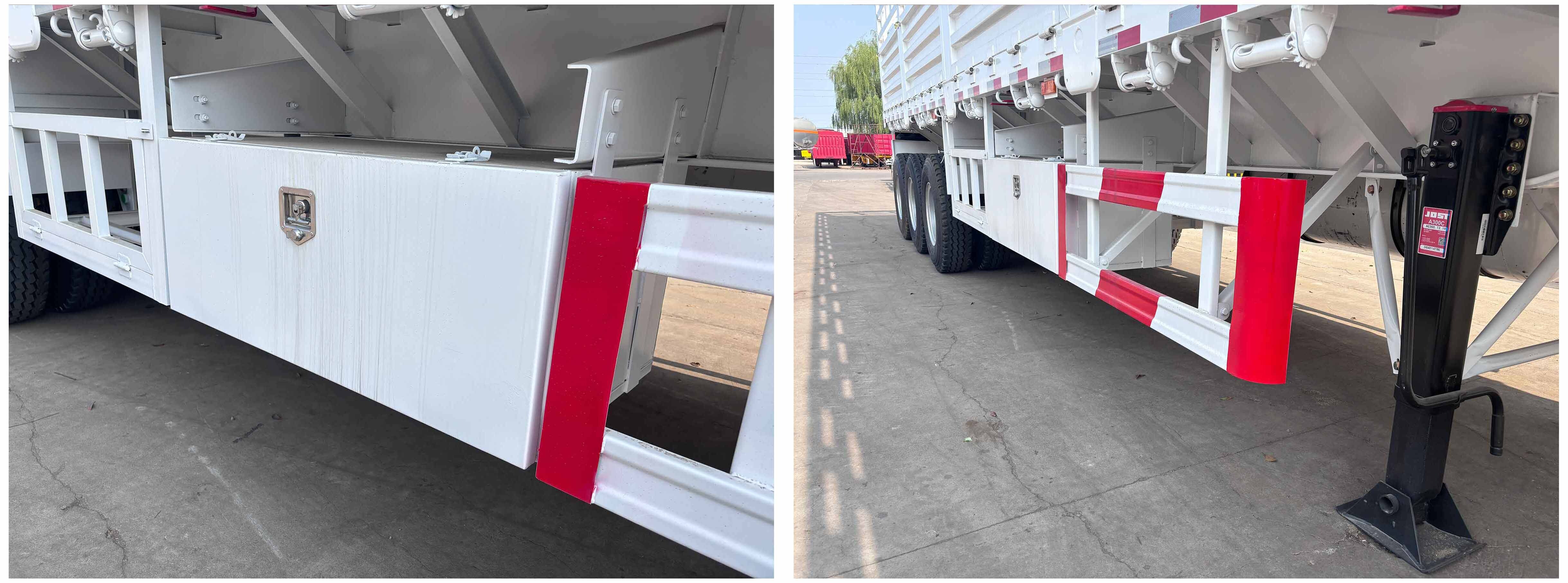

AccessoriesOne standard tool box
Spare tire rackOne
PaintingComplete Chassis sand blasting to clean rust, 1 coat of anti corrosive prime, 2 coats of final paint

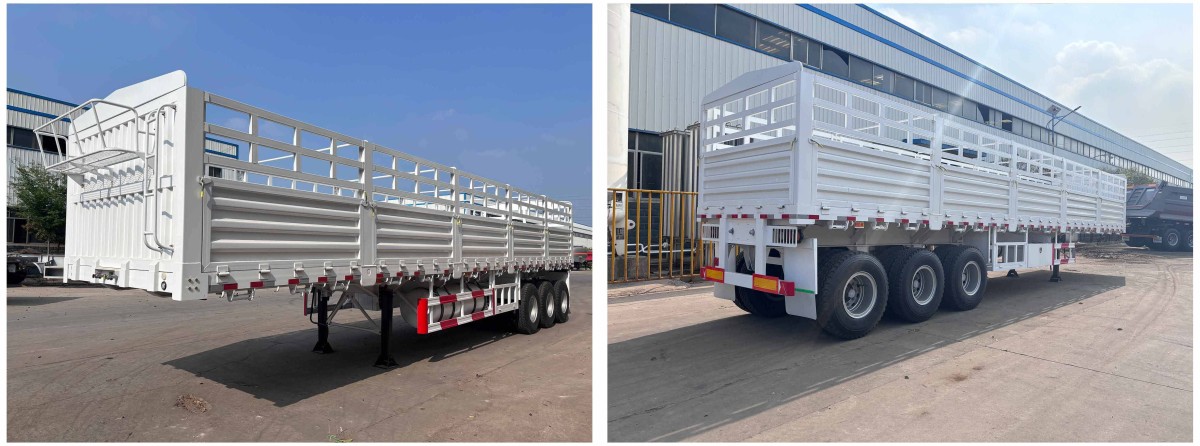

3 axles fence semi trailer.jpg

The fence cargo trailer are independently processed by HUAYU , and the parts are all world-renowned brands.Fence cargo trailer Axle and braking system are provided by BPW, while the fence cargo Trailer’s landing gear is provided by JOST.

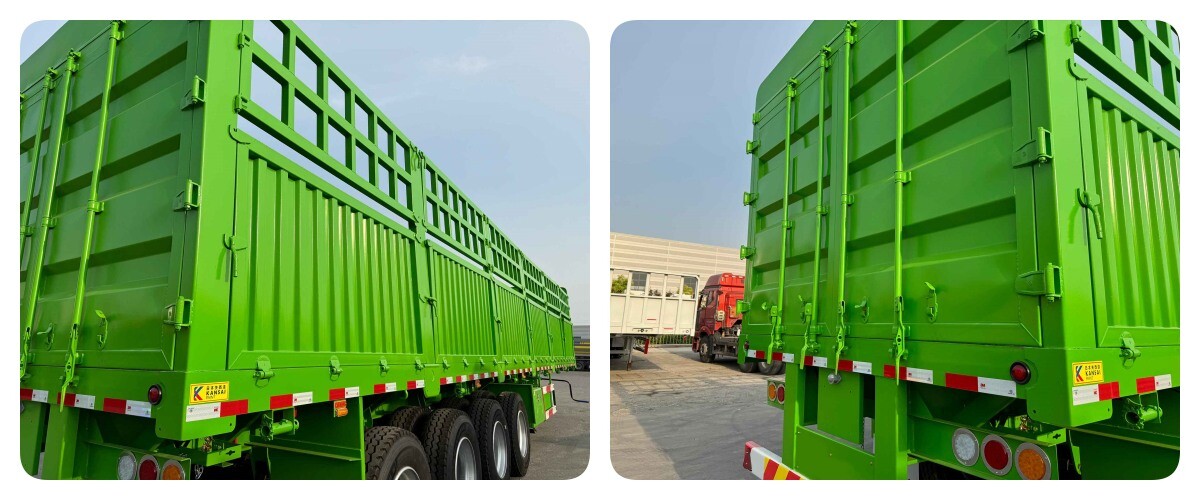

The standard size of this fence semi-trailer is 40 feet, we can make different sizes according to your needs, such as 20/40/45 feet, all can be customized. Not only that, the biggest highlight of this semi-trailer is that the fence on it is removable, which can be used for multi-purpose, when you don't need the fence or transporting containers, you can remove the fence.

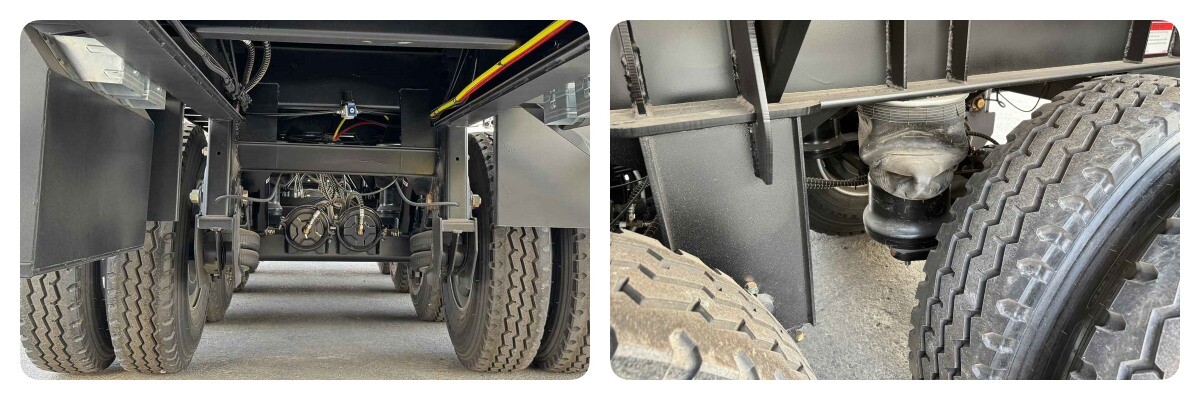

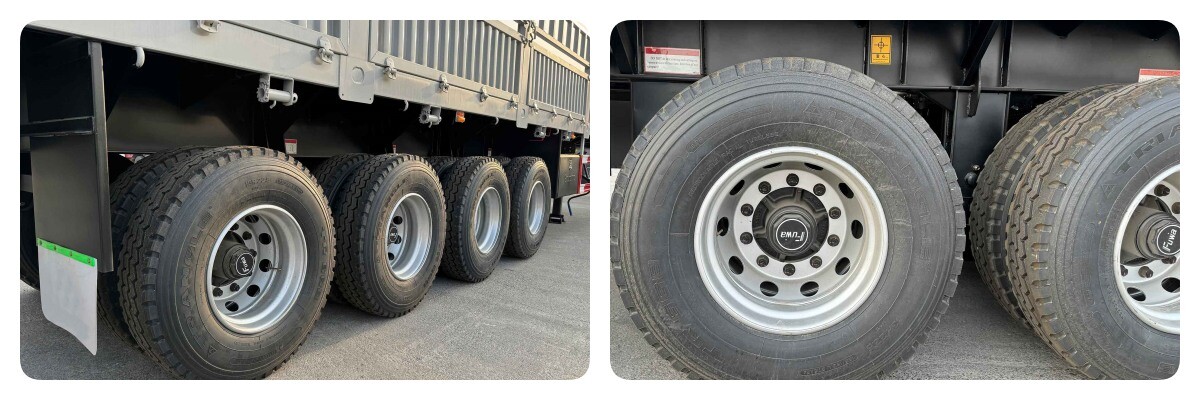

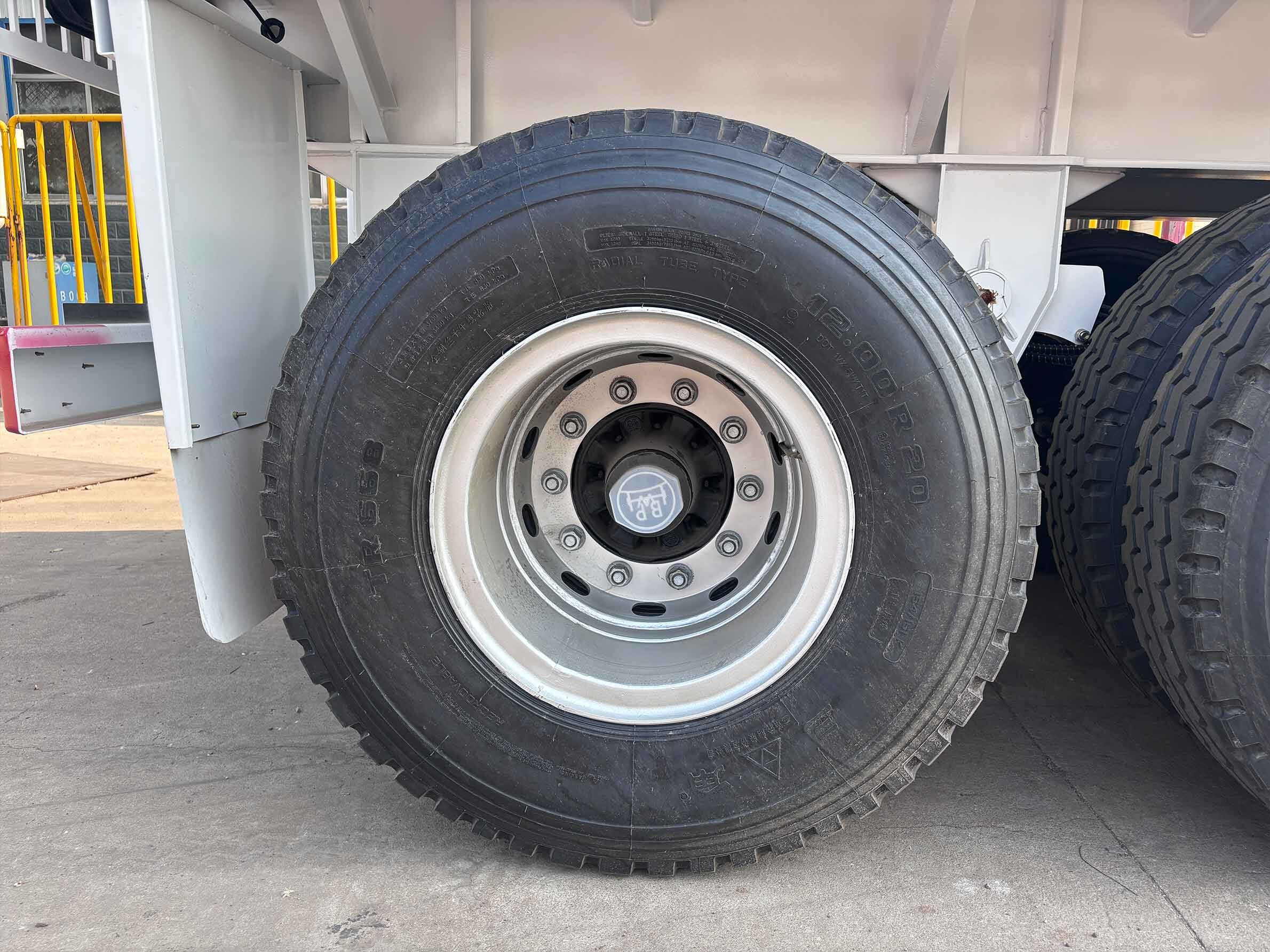

HUAYU 3 axles fence semi-trailer adapt 12R20 double tyres and BPW axle

animal semi  trailer.jpg

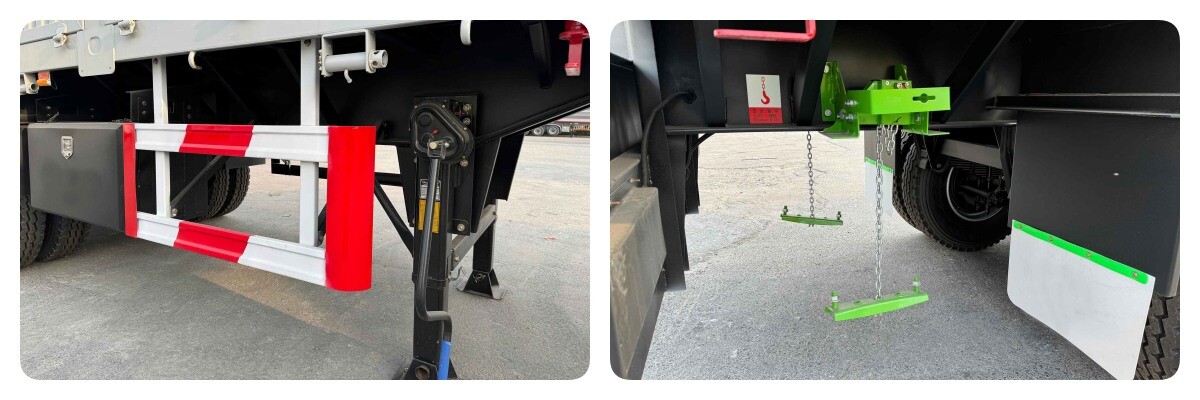

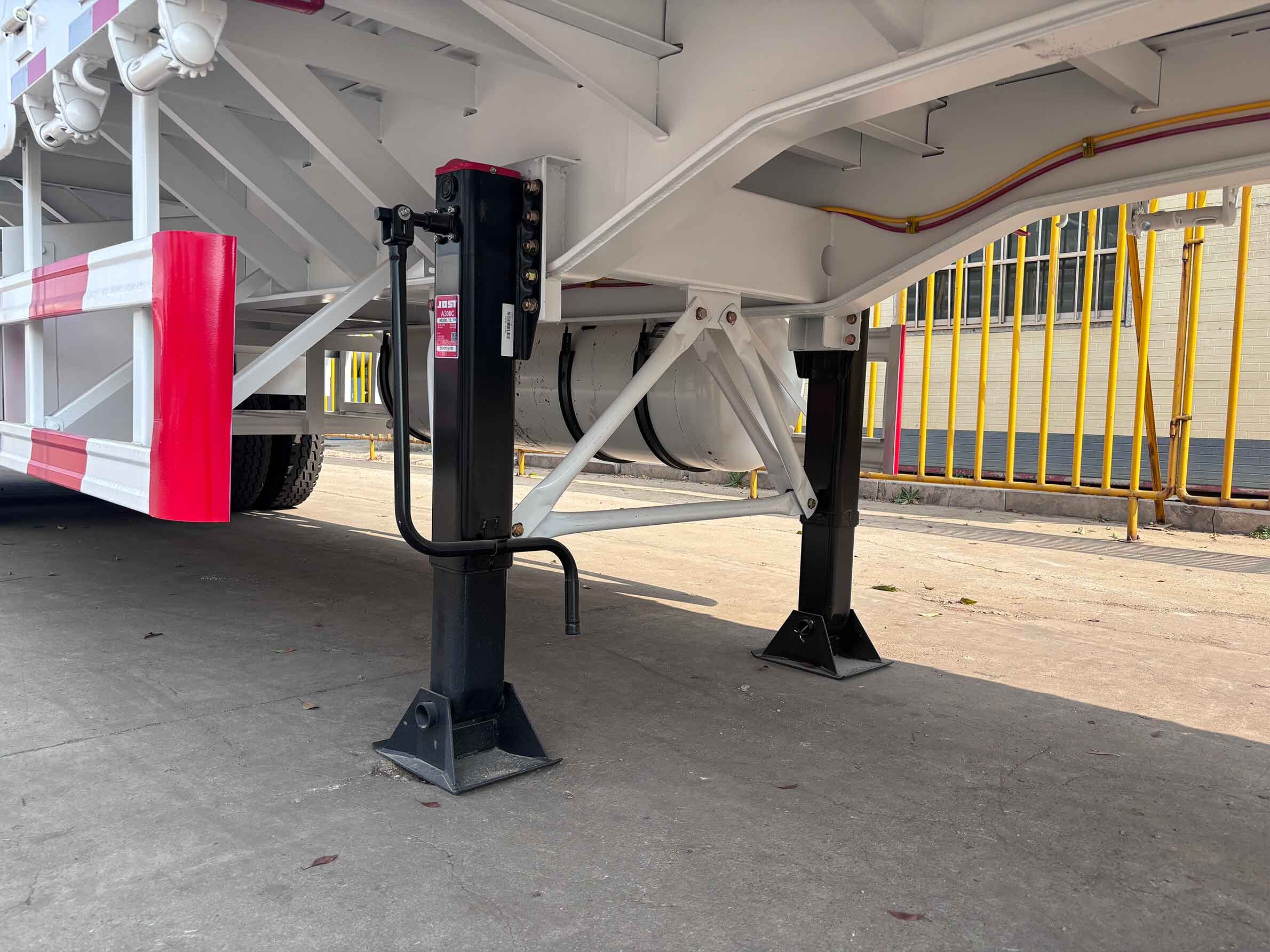

Fence semi-trailer with high-strength support structure paired and JOST Landing Gear

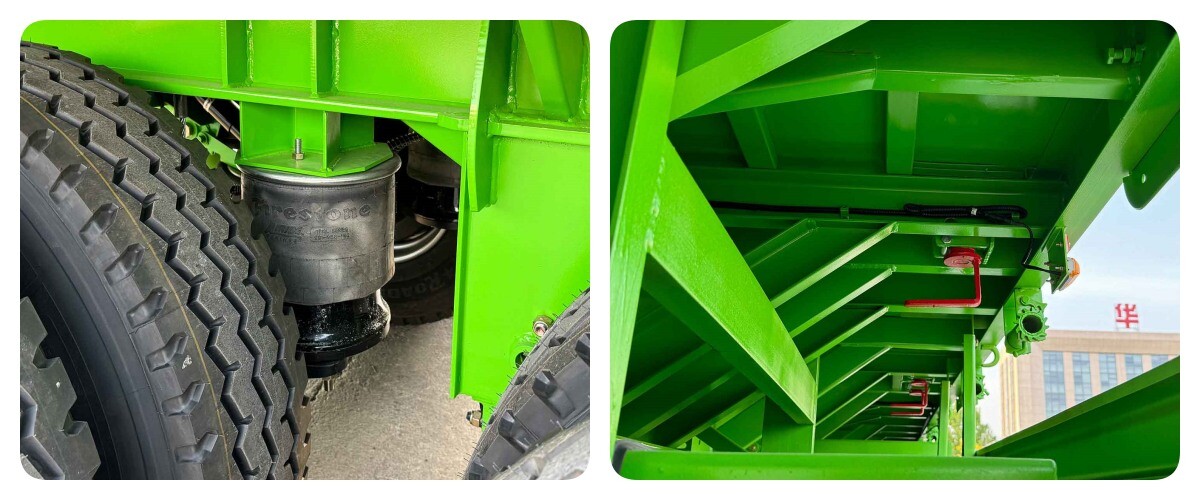

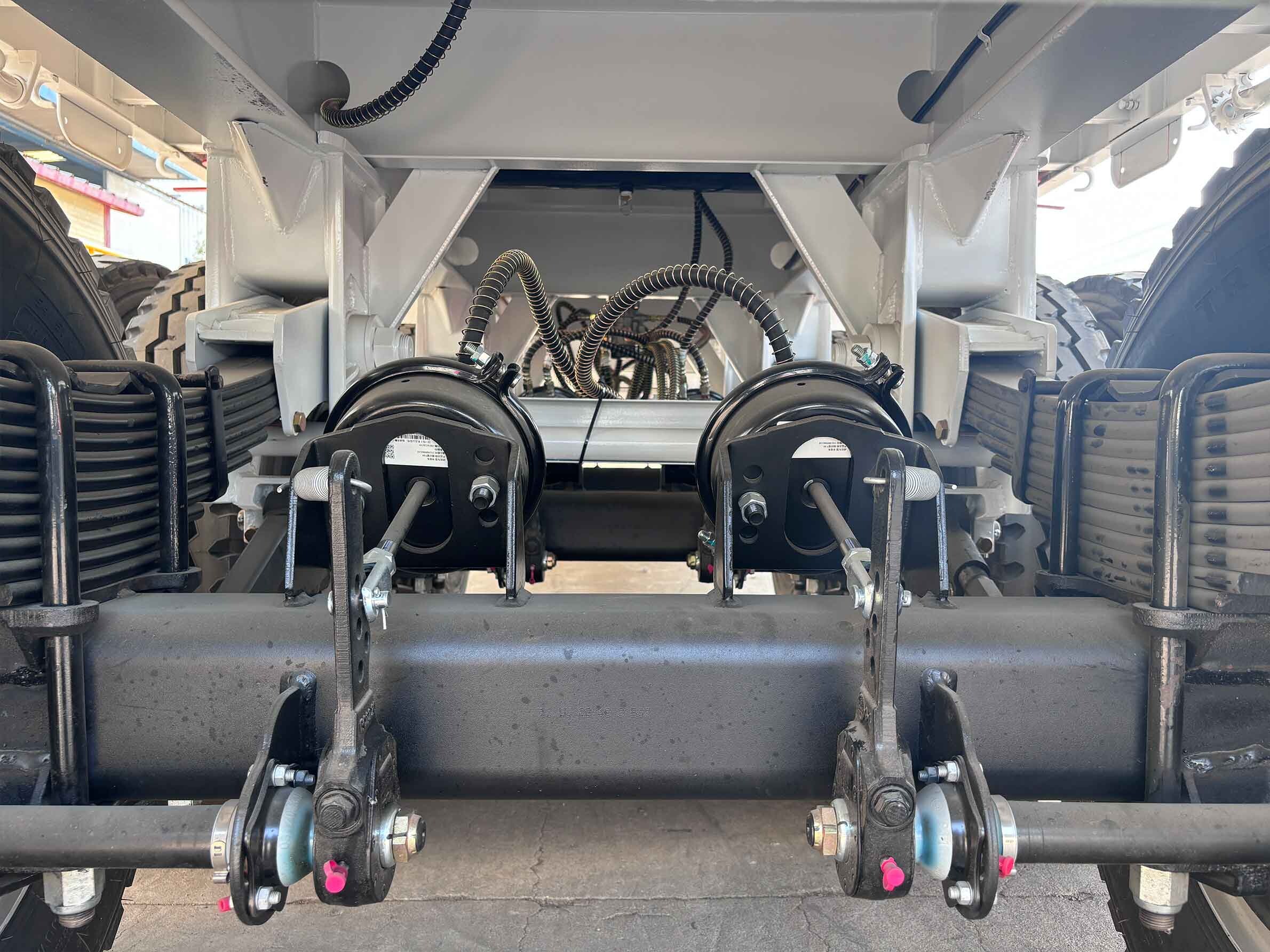

Fence semi-trailer with high cushioning capacity leaf springs


  HUAYU Semi Trailer Factory

HUAYU factory covers an area of 600,000 square meters with 10 semi-trailer production lines, with low plate semi-trailer workshop, powder tank semi-trailer workshop, oil tank semi-trailer workshop. HUAYU has the most professional production team of 500 employees and 50 professional semi-trailer designers, and can accept customized services to meet any customized needs of customers


Packing and shipping area


Trailer site production area

Tank trailer production area.jpg

Tank trailer production area


Aluminum alloy trailer production area
