The Largest Semi Trailer Manufacturer in Northern China, Trustworthy

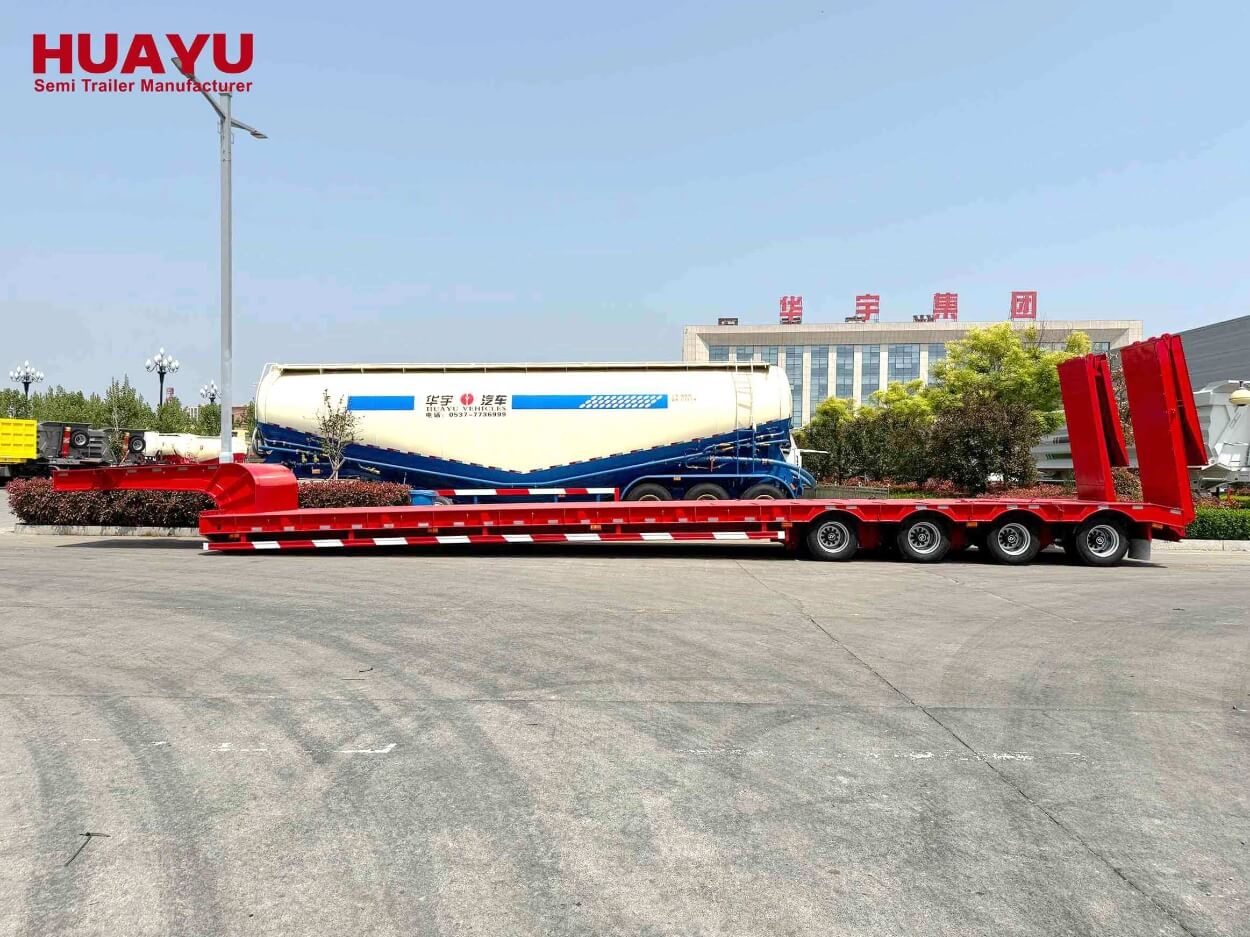

4 Axle New Heavy Equipment Lowbed Trailer Truck Semi Trailers
HUAYU lowbed semi trailers are usually used to transport heavy vehicles, rail vehicles, mining machinery, construction machinery and other heavy cargo
Trailer Type: 4 Axles 100Ton Lowbed Semi Trailer
Price Range: $18,000-35,000
Delivery Time: 10-20 days
Load capacity: 100ton
Application: Heavy machinery
Get A Quote

 Product details

Low plate semi-trailer mainly transport heavy vehicles (such as tractors, buses, special vehicles, etc.), railway vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy goods, the cargo platform plane height is shorter, the wheel end diameter is smaller, Low center of gravity, strong stability and passability.

Model:  4 Axle Lowbed Trailer with Hydraulic Ramps

Loading capacity : 100-120 ton

Overall dimension: 15800mm*3000mm*3750mm

Axles: 4 axles, HUAYU brand

Tire: 16 units, 12R22.5

Suspension: Spring suspension

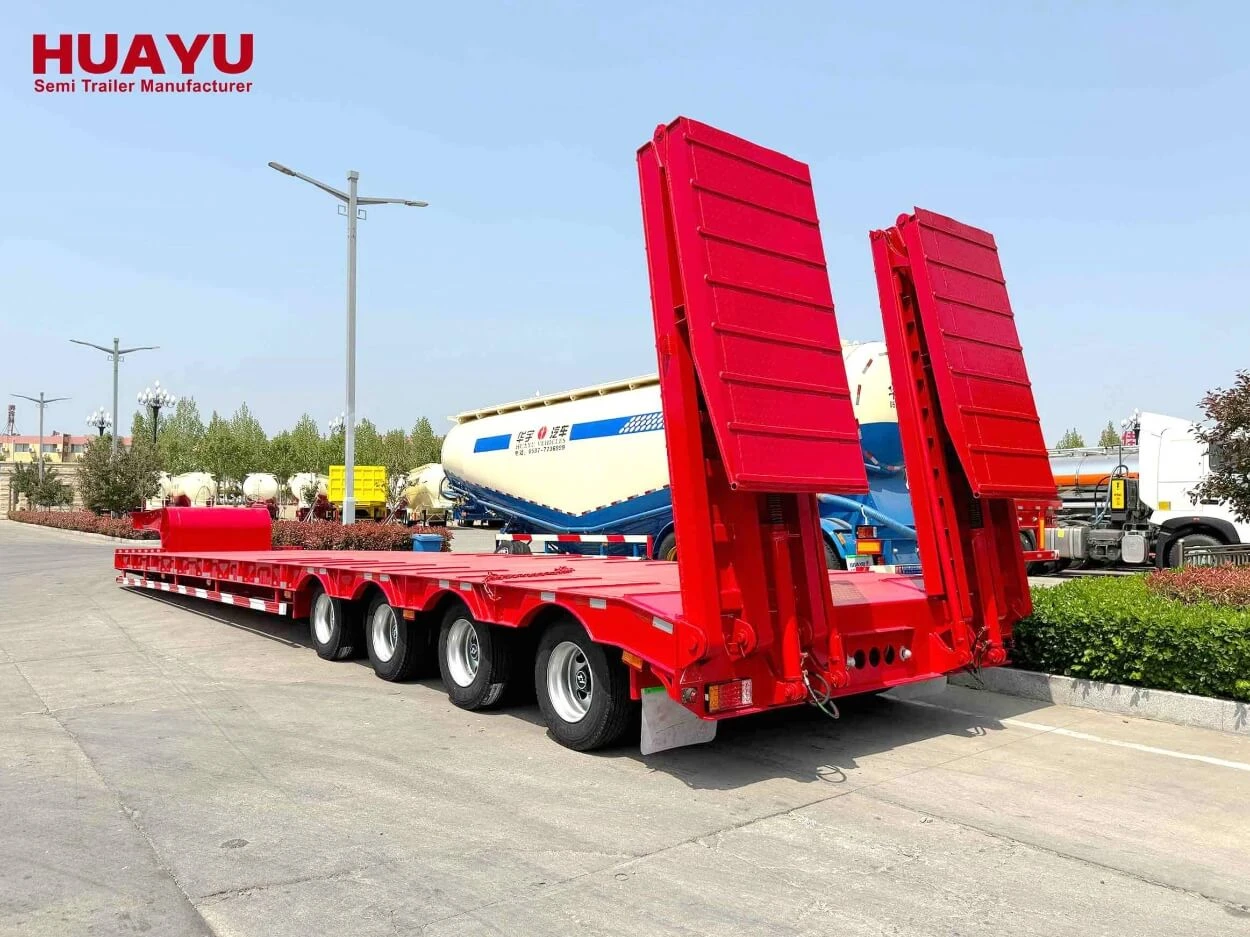

4 axles red low bed trailer.jpg

The HUAYU 4 axle gooseneck low-bed semi-trailer have a low deck height for easy loading and unloading of heavy equipment or machinery. This design helps to transport tall cargo while maintaining stability.

The removable gooseneck low-bed trucks have a strong load-bearing capacity because of the high strength steel.

anti-slip patterned platform.jpg

HUAYU 4 axle gooseneck low-bed semi-trailer with anti-slip patterned platform

300mm high side beam lowbed trailer.jpg

HUAYU 4 axle gooseneck low-bed semi-trailer with 300mm high side beam

HUAYU 4 axles fence semi-trailer adapt 235/75R17.5 double tyres

Low flatbed gooseneck and electric ladder.jpg

HUAYU Vehicle is made of Q345B steel to ensure the carrying capacity of the semi-trailer


Advantages of low bed semi trailer:


1. Low center of gravity design: low plate semi-hanger owner plane shelf is relatively low, which ensures the stability and safety in the transportation process, especially suitable for transporting a variety of large machinery and steel and other heavy cargo.


2. High strength and durability: the main beam of the low plate semi-trailer is made of high-strength structural steel, with tensile and durable structure, so that it can withstand the load requirements under harsh road conditions.


3. A variety of axles and suspension options: three-axis balance, two-axis balance or rigid suspension can be used, and a mass balance block is installed between the front and rear leaf springs to maintain the balance of the front and rear axles.


4. Wide range of applications: low plate semi-trailer is suitable for a variety of mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment and various steel transportation, wide range of uses, efficient and fast.

Strong ability to transport ultra-high cargo and pass overhead obstacles: Due to its low center of gravity design, low plate semi-trailers are particularly suitable for transporting ultra-high cargo and have a strong ability to pass overhead obstacles


  HUAYU Semi Trailer Factory

HUAYU factory covers an area of 600,000 square meters with 10 semi-trailer production lines, with low plate semi-trailer workshop, powder tank semi-trailer workshop, oil tank semi-trailer workshop. HUAYU has the most professional production team of 500 employees and 50 professional semi-trailer designers, and can accept customized services to meet any customized needs of customers


Packing and shipping area


Trailer site production area

Tank trailer production area.jpg

Tank trailer production area


Aluminum alloy trailer production area
